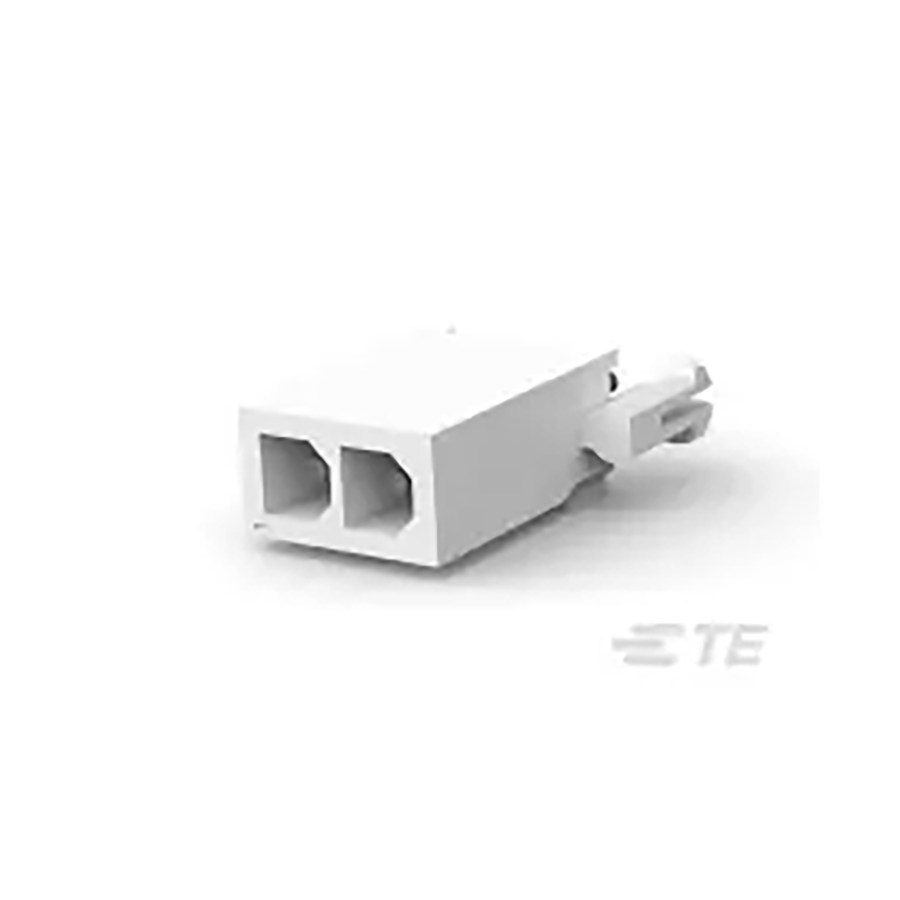

1-770872-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-770872-0
Datasheet:
Description:
Power Connectors Through Hole Current Rating:9.5 A Voltage Rating:600 V Pin Male
| Parameter | Value |
|---|---|
| Length | 9.83 mm |
| Width | 9.83 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 13.49 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 6.35 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 4.14 mm |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 4.1148 mm |
| Number of Terminals | 2 |
| Current Rating | 9.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Pin |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Number of Ports | 1 |
| Fastening Type | Ramp |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 9.5 A |
| Housing Color | White, Natural |
| Plating | Tin |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 62 µm |
| Plating Thickness | 150 µm |
| Contact Gender | Male |
| Number of Power Positions | 2 |
| VDE Tested | Yes |
| Number of Signal Positions | 0 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 3951
Distributors
pcbx
pcbxUnit Price$0.83270
Ext.Price$0.83270
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83270 | $0.83270 |
| 10 | $0.63180 | $6.31800 |
| 25 | $0.61726 | $15.43150 |
| 50 | $0.61299 | $30.64950 |
| 100 | $0.53262 | $53.26200 |
| 300 | $0.51002 | $153.00600 |
| 500 | $0.48838 | $244.19000 |
| 1000 | $0.46764 | $467.64000 |
